Pavement Design in Road Construction

Civil Engineering Free Notes Online Civil Engineering Free Notes Online for B.S / B. Sc students and professionals. Free Download Class Notes, Lectures, Presentations, Assignments and Past Papers. Research Articles and Training Tutorials are also available related to Civil Engineering. ADVERTISEMENTS: Highway Pavements: Design, Types, Flexible and Rigid Pavement, notes and Functions. Also Learn about:- 1. Design of Highway Pavements 2. Pavement Evaluation 3. Design of Highway Pavements: Pavement design is governed by a number of considerations/factors, as given below: 1. Design Life of the Pavement: ADVERTISEMENTS: ‘Design period’ or ‘design life’ of.

BY Kiran Biradar

Introduction

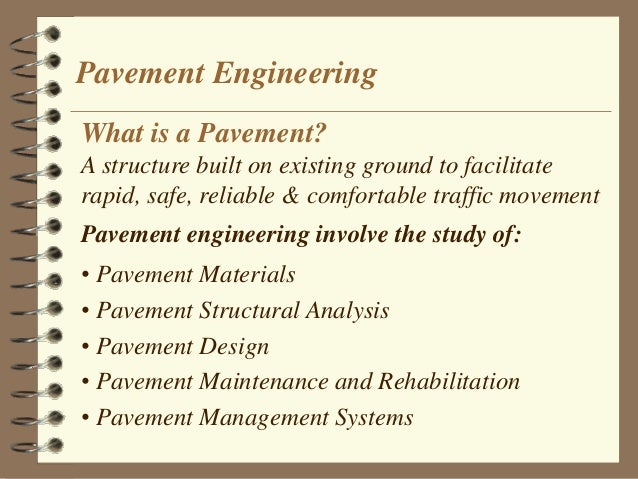

Pavement design is the major component in the road construction. Nearly one-third or one-half of the total cost of construction , so careful consideration should be taken in design of pavement. Type of pavements:

• Flexible pavement
• Rigid pavement
• Semi-rigid pavement

Factors which affect the selection of these pavements

• Initial cost
• Availability of good materials
• Cost of maintenance
• Environmental conditions
• Availability of industrial wastes
• Traffic intensity

Design parameters

General:

Criteria for determining the pavement (flexible)

Thickness is vertical compressive strain comes to the subgrade due to the standard axle laden of magnitude 8.17 kN (8170 kg) , if more than this causes permanent deformation in form of rutting. The maximum rutting can be accepted in village road as 50 mm before maintenance and the analytical evaluation can be done according to IRC:37. For rigid and semi-rigid pavement tensile stress is taken as the design criteria.

Traffic:

As per the IRC:37 design traffic should be 0.1 msa to 2 msa (million standard axles). Weight of commercial vehicle (laden) is considered as 3 tonnes or more. For design traffic we consider the existing traffic and rate of growth. Traffic study should be done as per the IRC:9.
Design life:

The no. of years to be taken until the major reconstruction. Design life depend upon the environmental conditions, materials used ,maintenance etc. For rural roads design life of 10 years is considered. In low volume roads for the thin bituminous surfacing design life of 5 years is considered.

Computation of design traffic:

a=p(1+r)^(n+x)

Where,

• a=no. of commercial vehicles/day for design
• p=no. of commercial vehicles/day at last count
• r=annual growth rate of commercial traffic
• n=no. of years between last count and year of completion of construction
• x=design life in years

Pavement components

Subgrade:

• To provide support to the pavement as its foundation.
• Top 30 cm of the cutting or embankment at formation level in rural roads consider as subgrade.
• A minimum of 100% of standard proctor compaction should be attain in subgrade.
• For clayey soil 95% and moisture content of 2% in excess of optimum value.
• Soil below subgrade should be compacted to 97% of standard proctor compaction.

CBR:

1. Conduct on sample which remoulded at OMC and dry density.
2. Test should be done per km depend on soil type.
3. If CBR less than 2% for 100 mm thickness then minimum CBR of 10% is to be provided to the sub-base for CBR of 2%.
4. If CBR more than 15% , no need to provide sub-base.

Sub-base course:

Selected materials placed on subgrade which is compacted to 98% of IS heavy compaction. Function of sub-base is to distribute the stresses over a wide area of the subgrade imposed by the traffic. Materials:

• CBR of 15%
• Passing through 425 micron IS sieve
• L.L<25 and P.I<6

Waste material such as Fly ash, Iron and steel slag Recycled concrete Municipal waste are also used. When subgrade is silty or clayey soil and annual rainfall of area is more than 1000 mm, a drainage layer of 100 mm then formation width should be provided.

Base course: to with stand high stress concentrations which develop due to traffic under the wearing surface. Different types of base course used are:

1. WBM
2. Crusher-run macadam
3. Dry lean concrete
4. Soft aggregate base course
5. Lime-fly ash concrete

Surface course:
Thickness of surface course depend upon the traffic volume and type of material used for it. For gravel roads extra thickness should be provided because of lost in thickness due to the traffic action. Bituminous wearing courses must be made up of good quality aggreagate with aggreagate impact value not exceeding 30 % in order to reduce degradation of aggregates by crushing.

Highway Pavement: Layers, Functions, Types, Defects, Rigid and Flexible Pavements!

Pavement design, in general, consists of determining the thickness of the pavement or of the several layers of which it is composed in order to resist the wheel loads of the traffic and transmit them safely on to the foundation soil.

Thus, the strength of the pavement must be adequate to resist the contact pressure from the wheel loads, and the thickness must be sufficient to transmit this pressure on to a larger area of the foundation soil below to avoid excessive deformation or shear failure of the soil. This will ensure that the pavement structure is strong and stable during the entire design period to serve traffic needs.

Functions and Requirements of a Pavement:

ADVERTISEMENTS:

The primary functions of a highway pavement are:

1. Provide a strong and smooth surface to resist traffic loads.

2. Distribute the loads safely on to a larger area of the foundation soil through the intermediate layers/courses

3. Carry traffic loads under repeated application during the anticipated design life without developing excessive or harmful deformations/strains.

In order to fulfill these functions, the requirements of a pavement are:

1. It should be strong enough structurally to withstand the stresses imposed by the traffic.

2. Its thickness should be adequate to transmit the applied loads and distribute them on to a larger area of the soil below so that the pressure transmitted is small.

3. It should provide a hard wearing surface so as to resist the abrasion caused by vehicle tyres.

ADVERTISEMENTS:

4. It should be smooth enough to provide riding comfort, yet provide enough friction for tractive effort and to prevent skidding.

5. It should be impervious to water so as to prevent its deteriorating effect on the layers below.

6. It should have adequate durability to serve through its design period.

7. Its initial cost and maintenance cost during its design life should be a minimum.

Some of these requirements may appear to be conflicting; but a judicious compromise should be struck for good design of a pavement.

Pavement Courses and Their Functions:

A pavement consists of layers or courses, in general, as shown in Fig. 7.1.

The courses/layers from bottom to top are:

ADVERTISEMENTS:

i. Surface (or wearing) course

ii. Base course

iii. Sub-base course

iv. Subgrade soil.

The functions of each of these layers are given below in the reverse order:

i. Surface (or Wearing) Course:

This is the topmost layer; its function is to provide a smooth, strong, abrasion-resistant and reasonably impervious course. Since it is directly in contact with the vehicle tyres, it has to resist the imposed wheel loads and transmit them safely to the layer below. The material may be granular, bituminous or cement concrete depending upon the nature of the construction.

ii. Jewel mania game free online game. Base Course:

This is immediately below the surface course and its function is to distribute the stresses transmitted through the surface course evenly onto the layers below. Invariably, it consists of granular or bituminous material, and acts as a structural part of the pavement.

iii. Sub-Base Course:

This comes just below the base course and provides additional help to the courses above it in distributing the loads. It also helps in preventing soil grains of the subgrade from intruding into the base course above, and counteracts frost action, if any. It may consist of stabilised soil or soil aggregate mixes, which facilitate drainage of free water from the pavement.

iv. Subgrade:

It is the compacted natural soil immediately below the pavement layers; this act as a foundation for the highway. The top surface of the subgrade is called the formation level.

Depending upon the alignment and the nature of the terrain, a roadway may be constructed over an embankment or a cutting, or at or nearly at the natural ground level. The formation of level, therefore, has to be properly decided to suit these conditions.

Strength Evaluation of Pavement Courses:

Evaluation of Subgrade Soil:

Subgrade soil, being natural soil compacted to the extent necessary, the criteria which govern its strength or bearing capacity are its ability to avoid shear failure and prevent harmful settlements (total as well as differential). At least top 50 cm of the subgrade soil is compacted to achieve the maximum dry density. The strength properties of the subgrade soil have to be determined for use in the design.

The common strength tests used for this purpose are:

1. Triaxial compression test

2. Plate bearing test

3. California bearing ratio (CBR) test

4. California resistance value test

The fourth involves the use of Hveem stabilometer and cohesion-meter; since this forms the basis of an empirical method of the design of what are known as ‘flexible pavements’.

The results from the triaxial compression test, the plate bearing test and the CBR test are used in some methods of pavement design.

Evaluation of Base and Sub-Base Courses:

These courses may contain primarily soil, or be made up of granular or stone aggregates. The above discussion relating to subgrade soil will be applicable for these courses also.

Evaluation of Surface Course:

If the surface course is of a bituminous mix, the Marshall Stability test is used. Evaluation of a cement concrete course may be done making use of a plate bearing test or Benkelman beam test.

Types of Pavements:

Structurally speaking, pavements can be classified as:

1. Flexible Pavements:

A flexible pavement invariably consists of all the courses (component layers) as shown in Fig. 7.1. Thus, it is a multi-layered system with low flexural strength. The external loads are largely transmitted to the subgrade through the intervening layers-the base and the sub-base – by means of interlocking at the grain to grain contacts in the granular structure.

Lateral distribution of the compressive stresses on to a larger area with increasing depth is the basic mechanism of stress transfer. The thicknesses of the intervening courses are so designed as to keep the stresses transferred to the subgrade soil less than the allowable bearing pressure to ensure that deformations or settlements remain within permissible limits.

The load distribution capacity of each of these layers depends upon the nature of the materials and the mix design aspects. The top layer or the surface (or wearing) course, which is in direct contact with the traffic loads has to be necessarily the strongest, while the layers below can be of relatively lower strength.

The surface course, therefore, consists of a mix with a binder material like bitumen and mineral aggregates. The base and sub-base courses consists of granular materials like crushed stone aggregate, gravel and aggregate-soil mixes.

The base and sub-base courses may consist of more than one layer of slightly different materials and specifications. Another important characteristic of a flexible pavement is that the deformations (especially if excessive) of the subgrade are transmitted and reflected to the surface and vice versa; that is why it needs a strong subgrade for successful performance.

2. Rigid Pavements:

A rigid pavement, in contrast to a flexible one, derives its capacity to resist loads by virtue of its flexural strength. Flexural strength allows the pavement to bridge over minor irregularities or weak spots in the subgrade or other courses such as the base or sub-base upon which it rests. Thus, the inherent strength of the pavement slab itself plays a major role in resisting the wheel loads; this, however, cannot under-rate the need for a strong subgrade.

It simply means that, provided a certain minimum support is derived from the subgrade, the performance of the rigid pavement is governed by the strength of the pavement slab rather than by that of the subgrade. Rigid pavements consist of cement concrete (OPC), which may be plain, reinforced or pre-stressed concrete.

The primary difference between a rigid pavement and a flexible one is in the structural behaviour; the critical condition of stress is the maximum flexural stress in the pavement slab not only due to the wheel load, but also due to warping caused by changes in temperature in the summer and winter seasons, and during the day and night. The warping of the slab is caused by the temperature gradient between the top and bottom, and the consequent flexure.

Further, temperature changes tend to cause stresses due to friction at the interface between the slab and the layer below, which opposes the movement of the slab. A rigid pavement can serve the dual purpose of a base and a wearing course. However, it is not normally laid directly over the subgrade when the latter consists of fine-grained soil. Providing a base or a sub-base below the pavement can enhance the life of the pavement significantly, and may prove economical in the long run.

3. Semi-Rigid Pavements:

A semi-rigid pavement is intermediate between the flexible and the rigid types. In this type, a base course of lean cement concrete, soil-cement (soil mixed with cement for a binder), or lime-pozzolona concrete (lime-fly ash-aggregate mix) is provided. A suitable surface course is provided as in a flexible pavement. The semi-rigid pavement derives some flexural strength, but much less than that of a cement concrete pavement; however, the phenomenon of lateral distribution of loads through the pavement depth, provides support.

Under certain circumstances of traffic and availability of materials, a semi-rigid type of pavement may prove to be economical.

4. Composite Pavements:

A composite pavement comprises multiple, structurally different layers of heterogeneous nature. A typical example is a concrete pavement of two layers, sandwiching a brick layer. A base of roller compacted concrete and surface course of bitumen is another example.

Pavements of bricks, stone blocks, and precast cement concrete blocks laid over granular bases may also be considered to come under this category.

Low-cost roads, in our country, consist of roads constructed primarily with soil using stabilisation techniques. From the structural point of view, it is of the flexible type. Loosely, a road with at least one stone-aggregate course may be said to be a paved one.

If no bituminous or concrete wearing course is provided over the granular soil or aggregate course, it is said to be an unsurfaced road.
